Oil Cooler Radiators High Flow
These oil coolers present a more efficient cooling surface than other types of oil cooler due the the fact that there is matrix surface area between each row, and the fact that the side plates also provide additional cooling area.

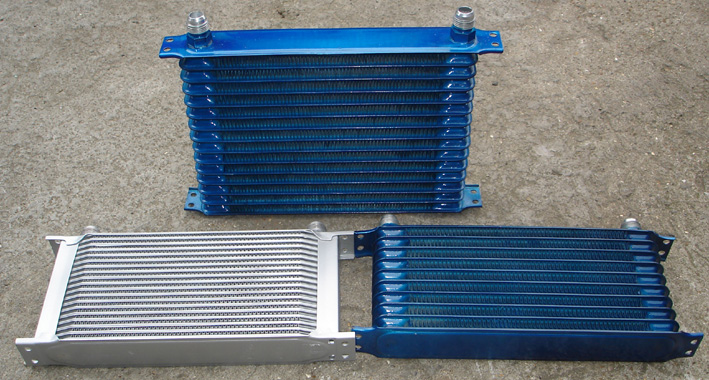

Consequently although they may contain less rows than the classic type they are physically bigger. The photo at base shows:
15 row greddy type radiator in the background (matrix measures 210mm high, 300mm wide, 50mm deep)
19 row classic type radiator in the left foreground (matrix measures 135mm high, 250mmwide, 50mm deep)
10 row greddy on the right foreground (matrix measures 135mm high, 300mm wide, 50mm deep
